RouterOS : SYN/DoS/DDoS Protection

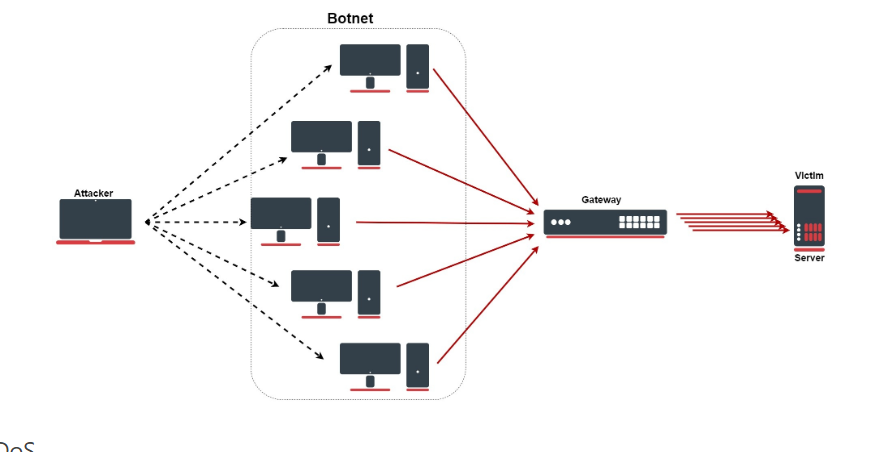

    A denial-of-service (DoS) or distributed denial-of-service (DDoS) attack is a malicious attempt to disrupt normal traffic of a targeted server, service, or network by overwhelming the target or its surrounding infrastructure with a flood of Internet traffic. There are several types of DDoS attacks, for example, HTTP flood, SYN flood, DNS amplification, etc.

    Protection against DDoS

    Configuration lines

    These rules are only an improvement for firewall, do not forget to properly secure your device: Building Your First Firewall!

    /ip firewall address-list
    add list=ddos-attackers
    add list=ddos-targets
    /ip firewall filter
    add action=return chain=detect-ddos dst-limit=32,32,src-and-dst-addresses/10s
    add action=add-dst-to-address-list address-list=ddos-targets address-list-timeout=10m chain=detect-ddos
    add action=add-src-to-address-list address-list=ddos-attackers address-list-timeout=10m chain=detect-ddos
    /ip firewall raw
    add action=drop chain=prerouting dst-address-list=ddos-targets src-address-list=ddos-attackers

    Configuration explained

    First, we will send every new connection to the specific firewall chain where we will detect DDoS:

    /ip firewall filter add chain=forward connection-state=new action=jump jump-target=detect-ddos
    /ip firewall filter add chain=forward connection-state=new action=jump jump-target=detect-ddos

    In the newly created chain, we will add the following rule with the “dst-limit” parameter. This parameter is written in the following format: dst-limit=count[/time],burst,mode[/expire]. We will match 32 packets with 32 packet burst based on destination and source address flow, which renews every 10 seconds. The rule will work until a given rate is exceeded.

    /ip firewall filter add chain=detect-ddos dst-limit=32,32,src-and-dst-addresses/10s action=return

    So far all the legitimate traffic should go through the “action=return”, but in the case of DoS/DDoS “dst-limit” buffer will be fulfilled and a rule will not “catch” any new traffic. Here come the next rules, which will deal with the attack. Let`s start with creating a list for attackers and victims which we will drop:

    ip firewall address-list
    add list=ddos-attackers
    ip firewall address-list add list=ddos-targets
    ip firewall raw add chain=prerouting action=drop src-address-list=ddos-attackers dst-address-list=dddos-targets

    With the firewall filter section, we will add attackers in the “DDoS-attackers” and victims in list “ddos-targets” list:

    /ip firewall filter
    add action=add-dst-to-address-list address-list=ddos-target address-list-timeout=10m chain=detect-ddos
    add action=add-src-to-address-list address-list=ddos-attackers address-list-timeout=10m chain=detect-ddos

    SYN Attack

    SYN Flood

    An SYN flood is a form of DoS attack in which an attacker sends a succession of SYN requests to a target’s system in an attempt to consume enough server resources to make the system unresponsive to legitimate traffic. Fortunately, in RouterOS we have specific feature for such an attack:

    /ip settings set tcp-syncookies=yes

    The feature works with sending back ACK packets that contain a little cryptographic hash, which the responding client will echo back with as part of its SYN-ACK packet. If the kernel doesn’t see this “cookie” in the reply packet, it will assume the connection is bogus and drop it.

    SYN-ACK Flood

    An SYN-ACK flood is an attack method that involves sending a target server spoofed SYN-ACK packet at a high rate. The server requires significant resources to process such packets out-of-order (not in accordance with the normal SYN, SYN-ACK, ACK TCP three-way handshake mechanism), it can become so busy handling the attack traffic, that it cannot handle legitimate traffic and hence the attackers achieve a DoS/DDoS condition. In RouterOS, we can configure similar rules from the previously mentioned example, but more specifically for SYN-ACK flood:

    /ip firewall filter
    add action=return chain=detect-ddos dst-limit=32,32,src-and-dst-addresses/10s protocol=tcp tcp-flags=syn,ack

    Source : SYN/DoS/DDoS Protection – RouterOS – MikroTik Documentation
